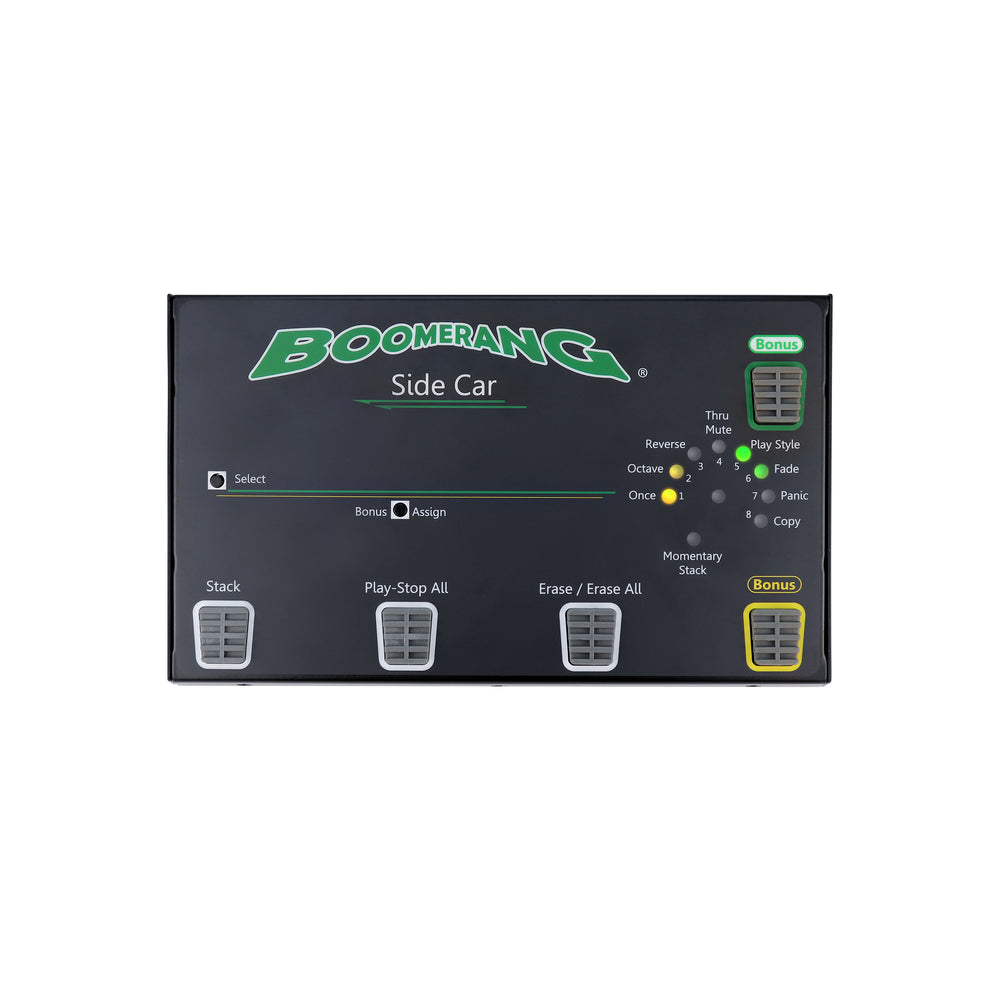

Side Car Controller

Sale price

Regular price $219.00
( / )
Click here to be notified by email when Side Car Controller becomes available.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.




Why Buy the Side Car?
With the Side Car Controller you get 3 dedicated footswitches which control “Stack”, “Erase” and “Play Stop All”. You also get 4 additional bonus features for a total of 8 between the 2 pedals. With these additional Bonus options, you can unlock the true potential of the Rang III including the easy use of “Loop 4” without needing to give up any bonus features.

Connecting to the Rang III
The Side Car Controller connects to the Boomerang III using a standard 5-pin MIDI cable (included with purchase). One end of the MIDI cable connects to the “Pedal Link Out” port on the Side Car and the other end connects to the “Pedal Link IN” port on your Rang III. No additional setup is needed. You can also daisy chain the Side Car to the RangIII’s power supply with the DC power Y splitter included with your purchase.

Momentary Stack Mode
Momentary Stack Mode is a feature that was included on the original Boomerang and Boomerang Plus models. This feature has been reintroduced on the Side Car Controller.  In this mode, stacking (also known as overdubbing) is only active when the “Stack” foot switch is being pressed instead of it being continuous while the “Stack” light is flashing. Sometimes this a better option for overdubbing depending on the musical part being added.

MIDI Clock with the Side Car Controller
If you want to use the Side Car with your Rang III but you already use the Rang III's “Pedal Link In” port for syncing with MIDI clock the Side Car will retransmit the MIDI clock messages to the Rang III. Simply connect the MIDI cable from the MIDI clock device to the “Pedal Link IN” port on the Side Car which puts the Side Car between the MIDI clock device and the Rang III in the signal chain. The Side Car MIDI commands and MIDi tempo will both transmit through the Side Car’s “Pedal Link Out” port.
The Panic Button
This feature is assignable to either the Green or Yellow bonus buttons on the Side Car and offers a quick cutoff to all loops and overdubs. With lots of overdubbing sometimes volumes can become overwhelming especially when using lots of effects like delay. The Panic button allows you to cut-off ALL audio quickly.

Compatibility With Older Rang III Models.
The included Y power cable splitter for daisy chaining the Side Car to the Rang III’s power supply is only compatible with Rang III models that have a serial number beginning with “91”. If you own a Rang III with a serial number beginning with either "L3" or "56" the Y splitter will not fit on those pedals. Please check your serial number before purchasing this product. Please contact Boomerang Customer Support for any questions you might have regarding this.



LIST OF ALL BONUS FEATURES

  • Stack (dedicated foot switch)
  • Play Stop All  (dedicated foot switch)
  • Erase/Erase All  (dedicated foot switch)
  • Panic
  • PlayStyle
  • Thru Mute
  • Copy
  • Reverse
  • Fade
  • Once
  • Momentary Stack


ITEMS INCLUDED

  • Side Car Controller
  • DC power Y splitter
  • 5-pin MIDI cable





Weight

4lbs

Pedal Dimensions

9'' x 6'' x 2''

Box Dimensions

12'' x 9'' x 5''

Y Splitter

13''

MIDI Cable

18''
